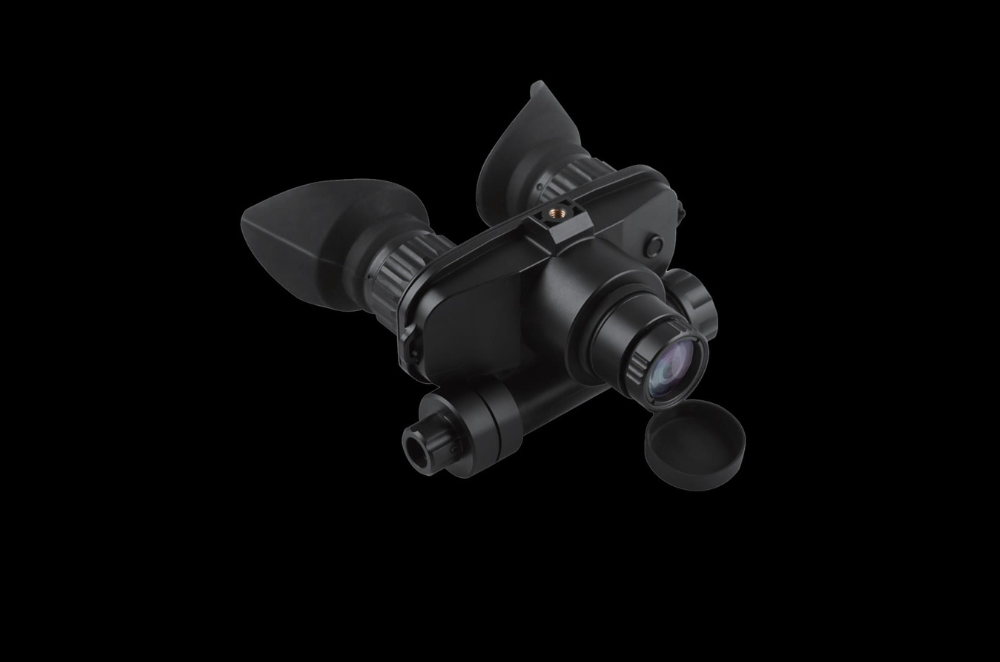

Military Level Tactical Night Vision Goggles
0.0002 lux minimum illumination, 50 fps real-time imaging, helmet-mountable monochrome night vision system.
Entry Tactical Night Vision
What It Is
The XHS7-B08 is a fully integrated tactical night vision system combining a high-sensitivity monochrome CMOS sensor, embedded ISP processing, 0.39-inch OLED display, onboard recording, and WiFi streaming into a compact helmet-mountable housing designed for real-time situational awareness under starlight conditions.
Performance
The XHS7-B08 achieves a minimum illumination of 0.0002 lux with a dynamic range exceeding 89 dB, producing 800 × 600 resolution imagery at 50 or 25 fps. The integrated 940 nm IR auxiliary illuminator extends usability to zero-ambient-light environments, and digital zoom from 1× to 8× allows target inspection without changing optics. Battery runtime reaches a minimum of 6 hours from a single 18650 Li-ion cell.
Key Technical Features
- RTSP live video streaming over WiFi at rtsp://192.168.0.1:554/livestream/12, enabling real-time command-level monitoring without physical tether.
- Onboard MP4 (H.264) recording with 32 GB internal storage expandable to 128 GB for sustained mission documentation.
- Defog / dehaze image processing pipeline integrated into the embedded ISP for reduced contrast degradation in obscured environments.
- Sub-3-second boot time and battery-primary power architecture for immediate field deployment.
Platform Compatibility
The XHS7-B08 is compatible with standard helmet-mount interfaces and can be operated handheld for flexible individual-soldier deployment. The WiFi interface supports integration into tactical command networks for remote viewing, and the system may be used as a standalone device or as a sensor node within a broader mobile command and navigation architecture.
Ultra-Low-Light CMOS Imaging
The XHS7-B08 uses a high-sensitivity monochrome CMOS core calibrated to operate at a minimum illumination of 0.0002 lux — below the threshold of human starlight vision. This enables real-time imagery in near-total darkness without any active illumination.
Integrated OLED Display Module
A 0.39-inch OLED panel with 1024 × 768 resolution is embedded directly in the housing, providing high-contrast imagery with no external monitor required. The display supports immediate field review without tethering to external hardware.
WiFi Streaming and Onboard Recording
The system streams live video over WiFi using the RTSP protocol, allowing command-level remote observation over a standard mobile or PC client. Onboard MP4 H.264 recording to internal or expanded microSD storage ensures continuous mission documentation.
Battery-Primary Tactical Architecture
Powered by a single 18650 Li-ion cell operating across a 2.7 V to 4.2 V range, the XHS7-B08 delivers a minimum of 6 hours of continuous operation in a low-power embedded design. Sub-3-second boot time eliminates readiness delay at point of deployment.
Our technical team provides pre-sales support for system integration planning, field testing, and deployment assessment.
Contact Technical TeamFull Technical Specifications
| Parameter | Specification |
|---|---|
| GENERAL | |
| Model Number | XHS7-B08 |
| Product Series | XHS7 Series |
| Product Type | Tactical Night Vision System |
| OPTICAL | |
| Sensor Type | CMOS (EO/Ultra Low Light) |
| Resolution | 800 × 600 |
| Color Mode | Monochrome |
| Spectral Range | 940 nm (IR auxiliary) |
| Digital Zoom | 1× – 8× (digital) |
| FOV Horizontal | 42.5° |
| PERFORMANCE | |
| Min. Illumination | 0.0002 lux |
| Frame Rate | 50 / 25 fps |
| Dynamic Range | > 89 dB |
| MECHANICAL | |
| Weight | ≤ 285 g |
| Mount Type | Helmet-mount / Handheld |
| ELECTRICAL | |
| Operating Voltage | 2.7 V – 4.2 V |
| Power Consumption | Low-power embedded design |
| Battery Life | ≥ 6 hours |
| ENVIRONMENTAL | |
| Operating Temperature | −40 °C to +55 °C |
| Storage Temperature | −50 °C to +70 °C |
| Ingress Protection | IP66 |
| FEATURES | |
| Defog / Dehaze | Defog / Dehaze (onboard ISP) |
| NVG Compatible | Helmet-mount compatible |
| INTERFACE | |
| Output Format | MP4 (H.264) |
| Video Output | OLED (0.39", 1024 × 768) |
| Interface Type | WiFi |
| Streaming Protocol | RTSP |
Designed for the Field
Night Patrol and Reconnaissance
The XHS7-B08 provides continuous real-time imaging under starlight for dismounted patrol and reconnaissance missions.
Search and Rescue Operations
The helmet-mount form factor and extended battery runtime support prolonged search and rescue operations in darkness.
Command-Level Remote Monitoring
WiFi and RTSP streaming capability allows integration into tactical command networks for remote observation and situational awareness.
Night Patrol and Reconnaissance
Dismounted soldiers and tactical teams operating in low-ambient-light environments require continuous hands-free imaging during patrol and reconnaissance missions. The XHS7-B08 delivers real-time 50 fps imagery at 0.0002 lux, eliminating the need for active illumination that could compromise position. The helmet-mount form factor preserves freedom of movement, and the 42.5° field of view provides the wide situational awareness required for mobile navigation under starlight.
- Min. Illumination: 0.0002 lux
- Frame Rate: 50 / 25 fps
- Field of View: 42.5°
- Mount Type: Helmet-mount compatible
Search and Rescue Operations
Search and rescue teams operating in darkness or degraded visibility require extended-duration imaging with minimal equipment burden. The XHS7-B08 provides at least 6 hours of continuous operation from its 18650 battery and can be used handheld or helmet-mounted. Defog image processing supports operation in smoke-filled or atmospheric haze conditions, and the 940 nm IR illuminator supplements natural starlight when needed.
- Battery Life: ≥ 6 hours
- IR Auxiliary: 940 nm
- Defog: Onboard ISP pipeline
- Weight: ≤ 285 g
Remote Command-Level Monitoring
Command posts require real-time imagery from forward-deployed personnel without a physical video link. The XHS7-B08 streams live video over WiFi using the RTSP protocol, enabling viewing on any compatible mobile device, PC browser, or VLC client. Onboard MP4 H.264 recording to 32 GB internal storage (expandable to 128 GB) ensures continuous mission footage archiving in parallel with the live stream.
- Streaming Protocol: RTSP
- Interface: WiFi
- Storage: 32 GB (up to 128 GB)
- Video Format: MP4 (H.264)
System Integration
Interface Architecture
The XHS7-B08 outputs live video over WiFi using the RTSP protocol, and supports mobile application control alongside browser or VLC-based PC access.
Full SDK access, firmware update tools, and OEM integration documentation require a corporate account — contact sales@star-navi.net for access.
WiFi / RTSP Interface
The XHS7-B08 transmits live video over 802.11 WiFi using the RTSP protocol, accessible from any standard RTSP client including VLC and mobile applications. The fixed stream URL provides a deterministic integration point for command-level viewing systems.
Documentation & Downloads
Public documents are available below. Additional corporate-restricted documents require a verified account. Export-controlled items require end-user certification.
2 Documents Restricted to Corporate Customers
Firmware packages, SDK archives, CAD drawings, and classified technical manuals require a verified corporate account. Apply for access and an account manager will review your registration within 1–2 business days.
