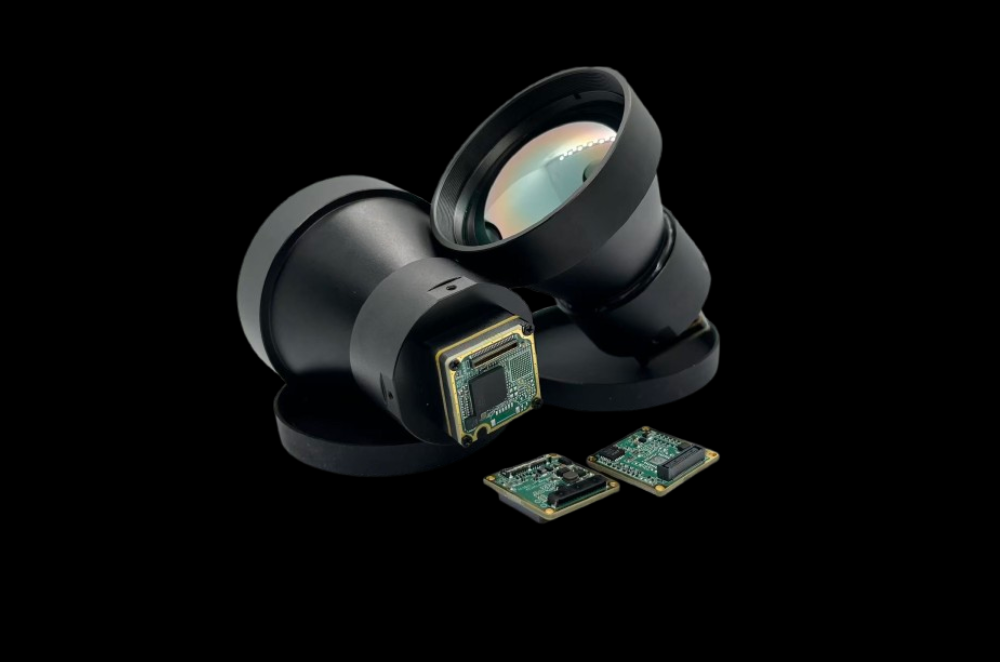

Professional Thermal Camera Module
≤40 mK NETD, 640 × 512 VOx LWIR, ≤1 W power — professional uncooled thermal Camera Module module for ground surveillance and industrial integration.
System Detail
What It Is
The XTM2640T is an uncooled LWIR thermal imaging Camera Module module using a vanadium oxide focal plane array, classified as an Uncooled LWIR Thermal Camera Module Module intended for OEM integration into ground surveillance systems, handheld imagers, border security platforms, and industrial inspection equipment.
Performance
The XTM2640T delivers thermal sensitivity of ≤40 mK NETD measured at F/1.0, 50 Hz, and 300 K reference temperature. The 640 × 512 VOx detector operates across an 8–14 μm LWIR spectral range with a 12 μm pixel pitch and supports sensor frame rates up to 60 Hz, with digital video output at 25 Hz or 50 Hz. Power consumption is ≤1 W from a 5–12 VDC supply. The module weighs ≤23 g without lens and connector, or ≤72 g configured with a 25 mm lens and connector.
Key Technical Features
- Multi-interface digital output supporting USB (UVC) and BT.656 video alongside RS-232, RS-422, and RS-485 serial communication for direct integration with embedded processors and digital-video systems.
- Intelligent image processing pipeline incorporating NUC non-uniformity correction, digital noise reduction, digital detail enhancement, and seven pseudo-colour palettes including White Hot, Black Hot, Iron Red, and Rainbow.
- Built-in electrical protection covering over-current, over-voltage, reverse-polarity, and high-voltage surge suppression for reliable operation in uncontrolled field power environments.
- Compatible with standard and optional lens assemblies from 6 mm to 75 mm focal length, enabling broad field-of-view configuration for the target integration scenario.
Platform Compatibility
The XTM2640T is suited for mast-mount or vehicle-fixed ground surveillance installations, integration into handheld thermal imager housings, industrial thermography instruments, and border security systems. The XTM2640T bare-core variant of the same imaging engine targets OEM board-level integration in custom enclosures.
VOx Thermal Sensitivity
The XTM2640T uses a vanadium oxide uncooled focal plane array operating across the 8–14 μm LWIR band with a 12 μm pixel pitch. This detector architecture achieves ≤40 mK NETD, enabling reliable detection of minute scene temperature differences under challenging environmental conditions.
Multi-Interface Video Output
The module simultaneously supports USB (UVC) and BT.656 digital video outputs alongside RS-232, RS-422, and RS-485 serial communication interfaces. This combination allows direct connection to embedded processors, display monitors, and digital recorders without additional signal conversion hardware.
Intelligent Image Processing Engine
Onboard processing applies non-uniformity correction, digital noise reduction, and digital detail enhancement in real time. Seven selectable pseudo-colour palettes and three digital zoom levels allow operators to adapt the displayed imagery to scene conditions and mission requirements.
Ultralight Power-Efficient Design
The Camera Module weighs ≤23 g without lens and draws ≤1 W from a wide 5–12 VDC supply, with built-in protection against over-current, over-voltage, reverse-polarity, and surge events. This power profile supports extended-duration portable and battery-backed installations.
Our technical team provides pre-sales support for system integration planning, field testing, and deployment assessment.
Contact Technical TeamFull Technical Specifications
| Parameter | Specification |
|---|---|
| GENERAL | |
| Model Number | XTM2640T |
| Product Series | XTM2 Series |
| Product Type | Professional Universal Thermal Camera Module |
| OPTICAL | |
| Sensor Type | Uncooled VOx Microbolometer (LWIR) |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8–14 μm (LWIR) |
| Focal Length (Standard Lens) | 9 mm (standard) |
| Optional Lens Focal Lengths | 6 / 9 / 13 / 19 / 25 / 35 / 50 / 75 mm |
| PERFORMANCE | |
| Sensitivity (NETD) | ≤40 mK @ F/1.0, 50 Hz, 300 K |
| Frame Rate | ≤60 Hz (sensor) / 25 Hz, 50 Hz (digital) |
| NUC Mode | Non-Uniformity Correction (NUC) |
| MECHANICAL | |
| Core Dimensions | 26 × 26 × 21.1 mm (without lens & connector) |
| Weight | ≤23 g (without lens & connector) / ≤72 g (with 25 mm lens) |
| ELECTRICAL | |
| Operating Voltage | 5–12 VDC |
| Power Consumption | ≤1 W |
| ENVIRONMENTAL | |
| Operating Temperature | −40 °C to +80 °C |
| Storage Temperature | −45 °C to +85 °C |
| Humidity | 5–95%, non-condensing |
| Shock Rating | 80 g, 4 ms, saw-tooth pulse, 3 axes, 6 directions |
| Vibration Rating | 6.06 g random vibration, all axes |
| FEATURES | |
| Noise Reduction | Digital Noise Reduction |
| Image Flip / Mirror | Horizontal / Vertical |
| Colour Palettes | White Hot, Black Hot, Iron Red, Inverse Iron Red, Rainbow, Red Hot, Lava |
| SDK Support | SDK available — contact sales@star-navi.net |
| INTERFACE | |
| Digital Video Output | USB (UVC), BT.656 |
| Serial Communication | RS-232 / UART232, RS-422 / RS-485 |
Designed for the Field
Ground Surveillance and Border Security
The XTM2640T addresses the need for a compact, low-power LWIR imaging engine deployable in fixed or portable ground surveillance roles.
Industrial Inspection and Thermography
The module supports industrial thermography and infrastructure monitoring applications requiring accurate thermal imaging in a self-contained Camera Module form factor.
OEM System Integration
System integrators and OEM manufacturers incorporate the XTM2640T into custom handheld imagers, surveillance housings, and embedded inspection instruments via its multi-interface output architecture.
Ground Surveillance and Border Security
The XTM2640T provides a compact LWIR imaging engine for fixed perimeter surveillance and border security installations requiring continuous unattended monitoring in all-weather conditions. Its operating range from −40 °C to +80 °C and high shock tolerance allow deployment in remote or exposed ground locations. The ≤40 mK NETD sensitivity and 640 × 512 resolution deliver the scene detail necessary for operator-confirmed threat assessment at surveillance distances, while the ≤1 W power budget enables solar or battery-backed installations.
- Sensitivity (NETD): ≤40 mK @ F/1.0, 50 Hz, 300 K
- Resolution: 640 × 512
- Operating Temperature: −40 °C to +80 °C
- Power Consumption: ≤1 W
Industrial Thermography and Inspection
The XTM2640T supports predictive maintenance and industrial inspection workflows where accurate thermal imaging of electrical panels, rotating equipment, and structural materials is required in compact instrument form factors. The enclosed Camera Module housing and multi-interface output allow direct integration with portable test equipment or fixed monitoring stations. The 8–14 μm spectral range and seven pseudo-colour palettes including Iron Red and Lava provide the thermal contrast and visual differentiation that inspection technicians require for rapid anomaly identification.
- Spectral Range: 8–14 μm (LWIR)
- Colour Palettes: White Hot, Black Hot, Iron Red, Rainbow, Lava
- Digital Zoom: X1 / X2 / X4
- Weight (with 25 mm lens): ≤72 g
OEM Integration into Custom Instruments
System integrators and instrument manufacturers embed the XTM2640T into handheld thermal imagers, surveillance housings, and embedded inspection platforms using its USB (UVC) and BT.656 video outputs with RS-232, RS-422, and RS-485 serial control. The XTM2640T bare-core variant of the same imaging engine provides board-level OEM integration without the outer housing. The 26 × 26 × 21.1 mm core footprint and ≤23 g mass minimise mechanical design constraints, while lens options from 6 mm to 75 mm focal length allow integrators to configure field of view for the target application without requiring a custom optical assembly.
- Core Size: 26 × 26 × 21.1 mm (without lens & connector)
- Weight: ≤23 g (without lens & connector)
- Optional Lenses: 6 / 9 / 13 / 19 / 25 / 35 / 50 / 75 mm
- Serial Interfaces: RS-232, RS-422, RS-485
System Integration
Interface Architecture
The XTM2640T provides dual digital video outputs and three serial communication interfaces, enabling flexible integration with embedded vision processors, display systems, and digital recorders.
Full interface configuration detail and register-level control documentation require corporate account access.
USB / BT.656 Video Interface
The XTM2640T outputs digital thermal video simultaneously via USB (UVC) and BT.656 at 25 Hz or 50 Hz. The UVC-class USB output allows plug-and-play connection to standard host systems without requiring a proprietary driver.
